Plug & Play Lug Mounted Camera Kit for 2010-2022 Toyota 4Runner

Manufactured by Camera Source

The new Lug Mounted Camera Relocation Kit improves rear visibility and allows the camera to be relocated to the RiG’d UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed.

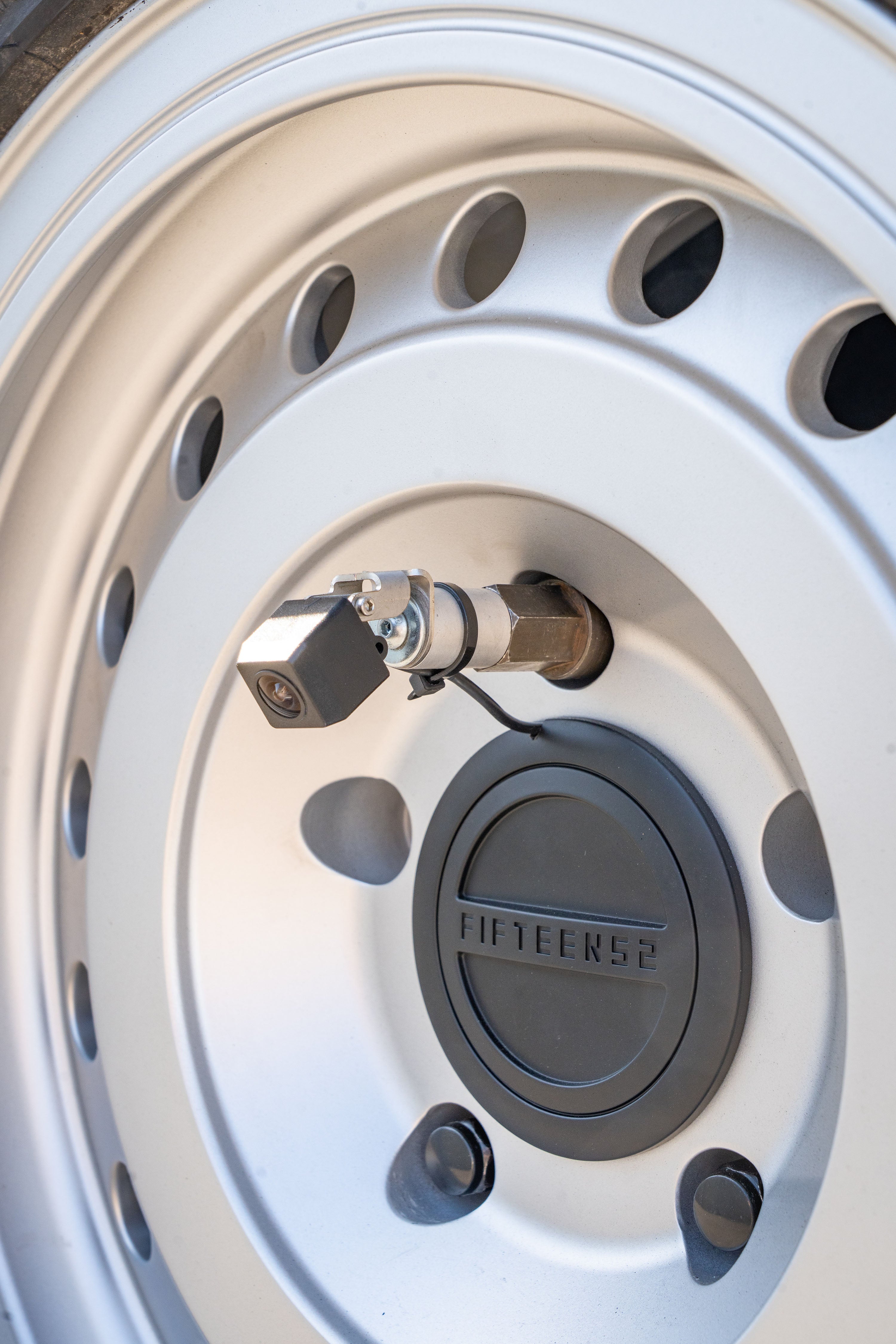

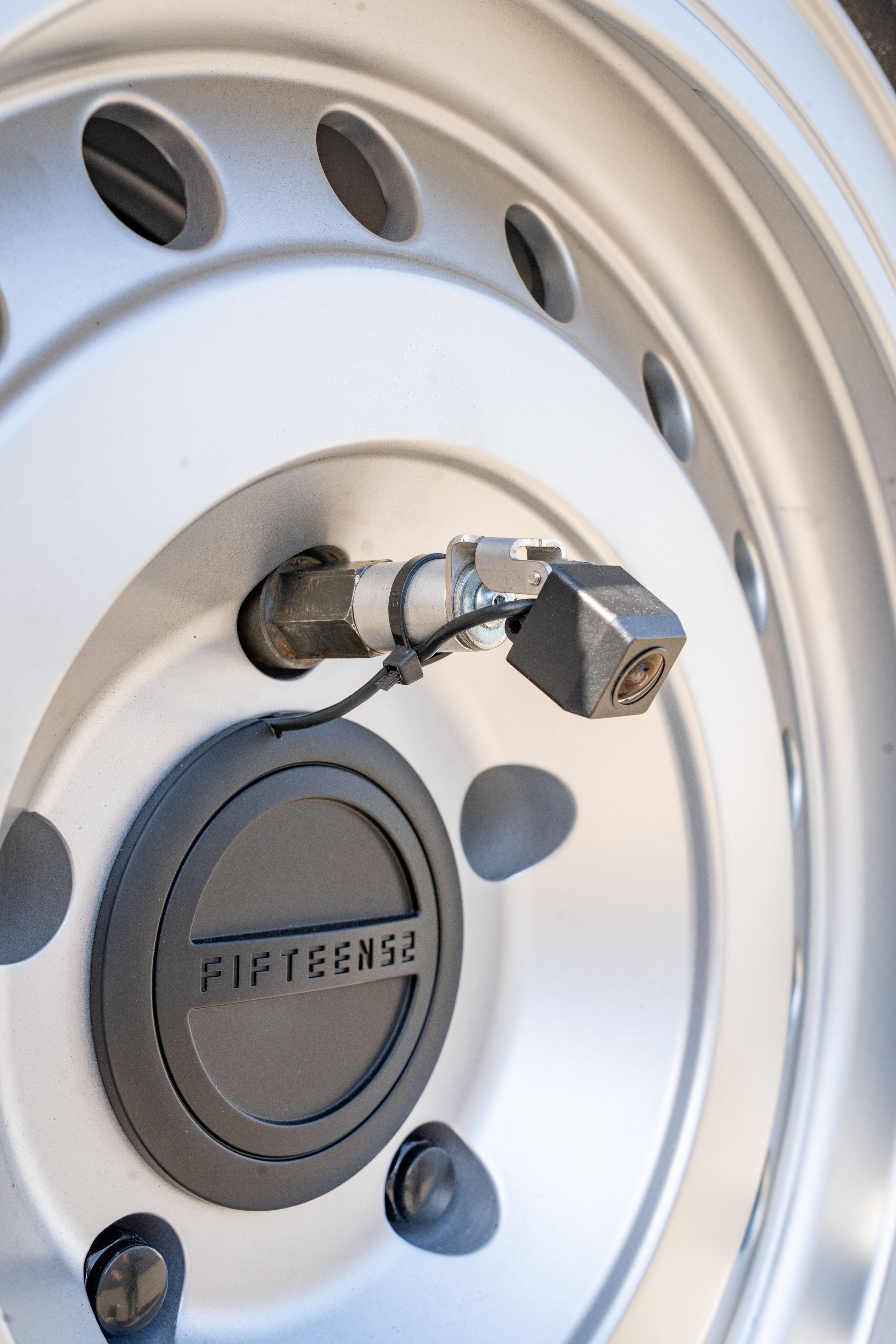

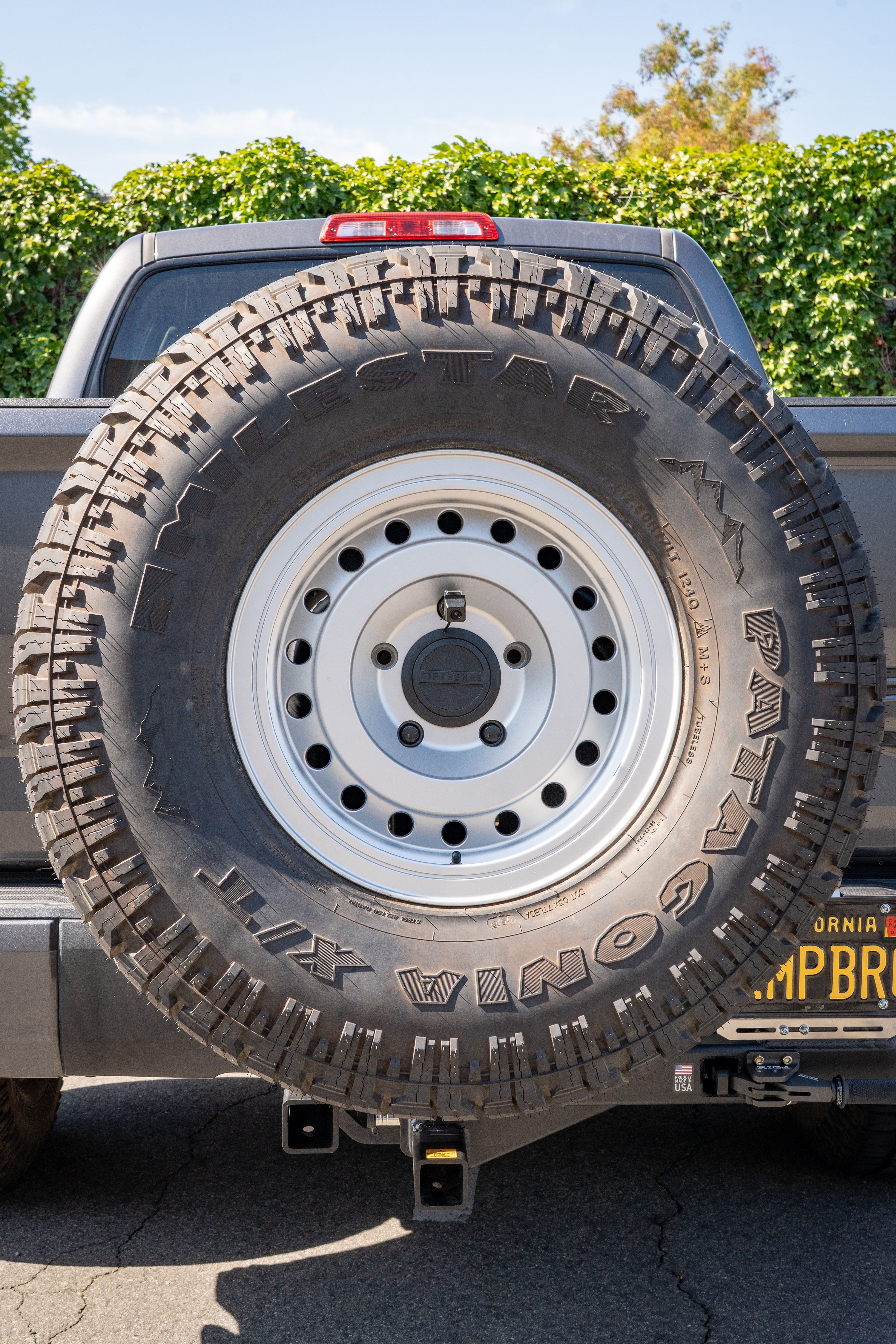

Simply mount the camera with lug mount bracket to your spare tire mount and connect the cable to your factory backup camera connection for a simple and seamless installation.

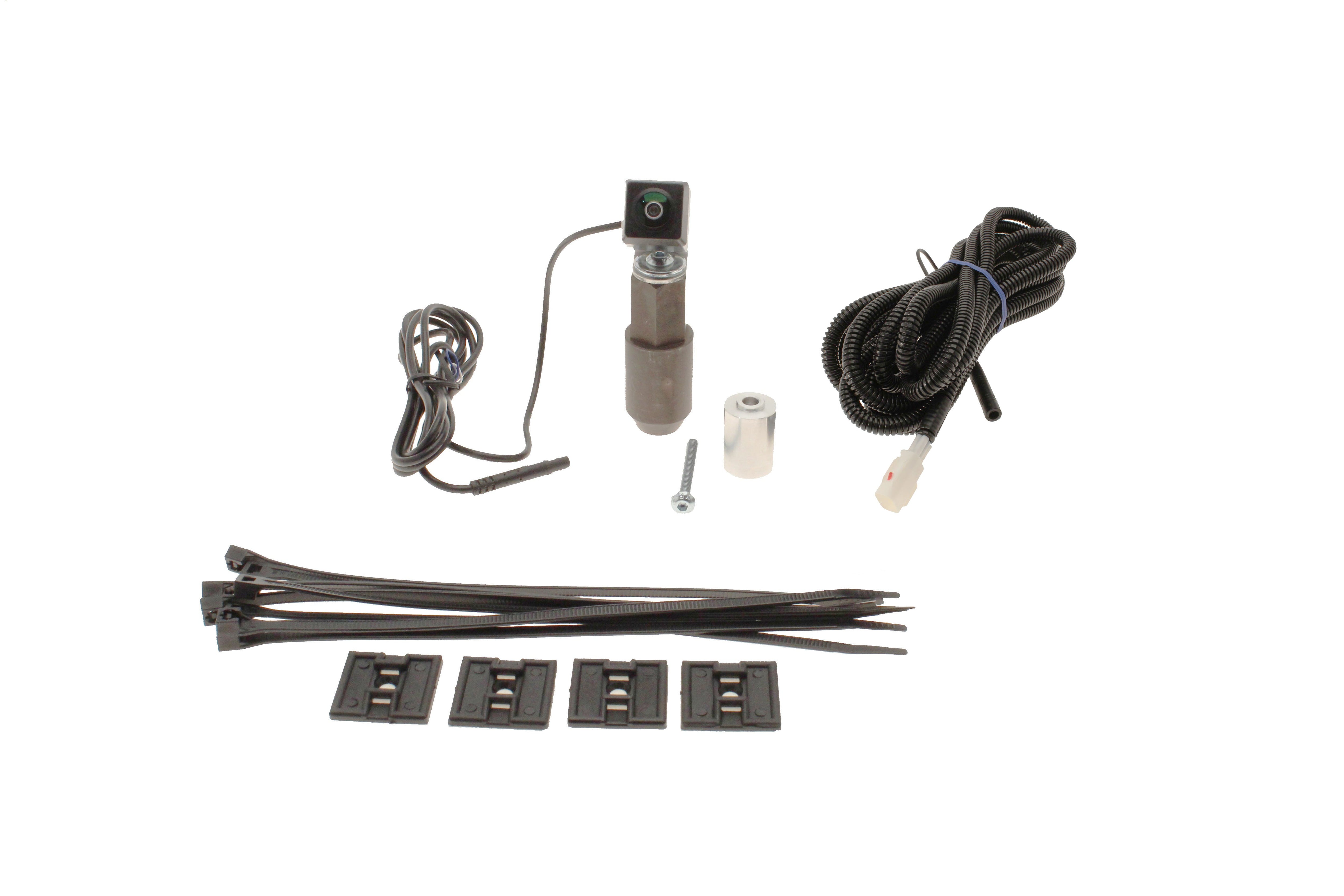

Kit includes the following:

• Super CMOS camera with night vision and optional parking lines

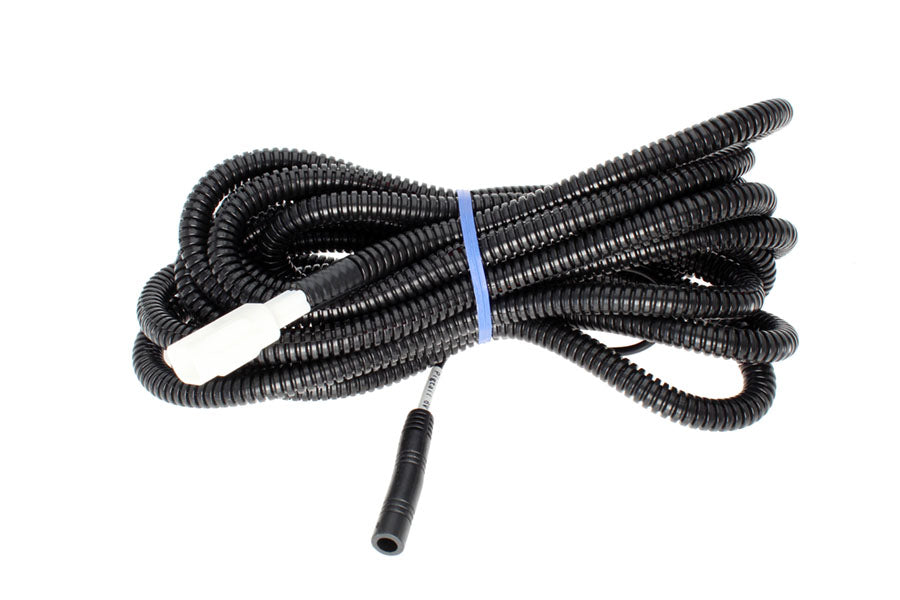

• Factory integration cable (plugs in under the box just in front of the rear bumper, uses the same connector as your factory camera). Cable is 14’ long to easily route through the tailgate and allow you to mount the camera to the lug mount bracket.

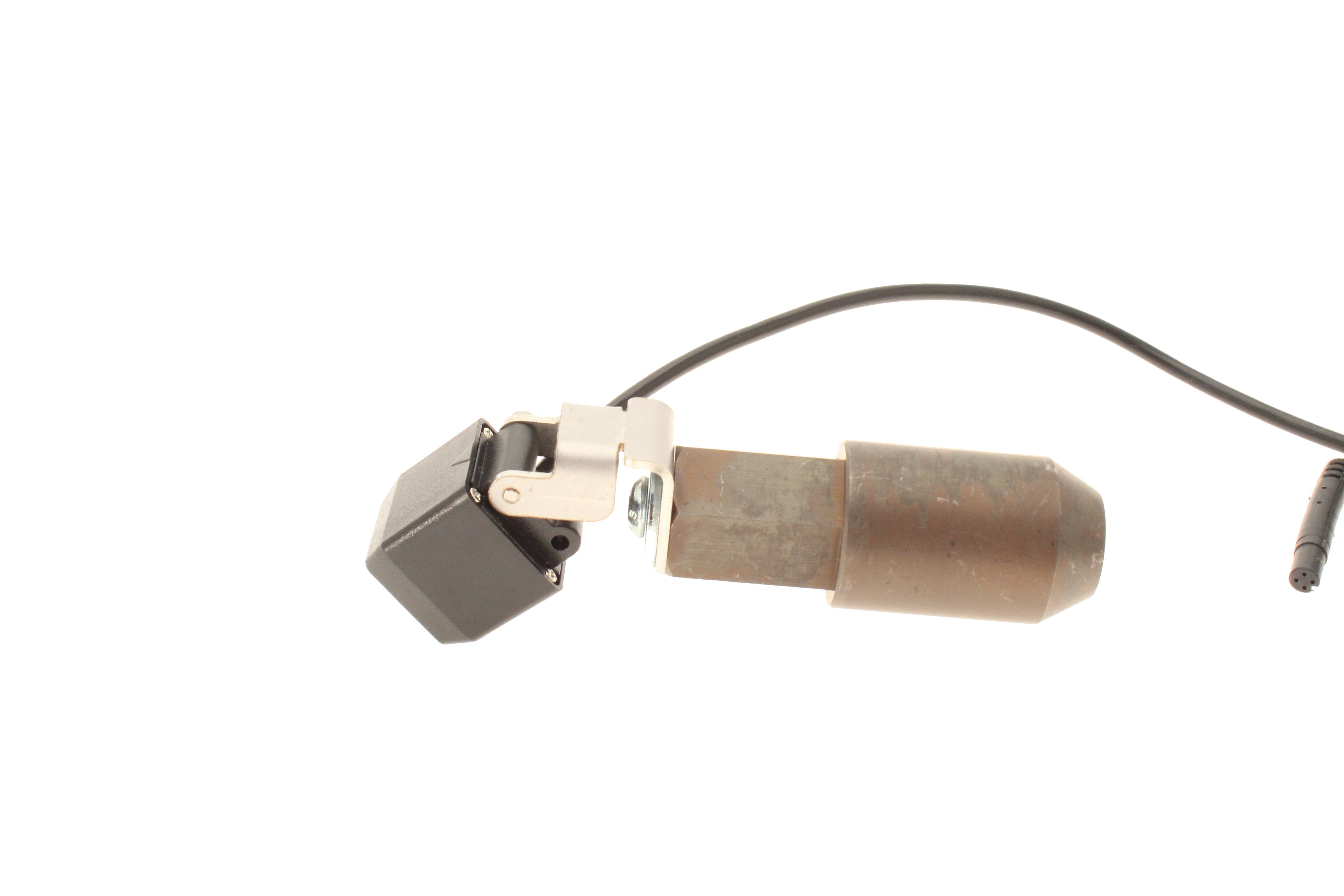

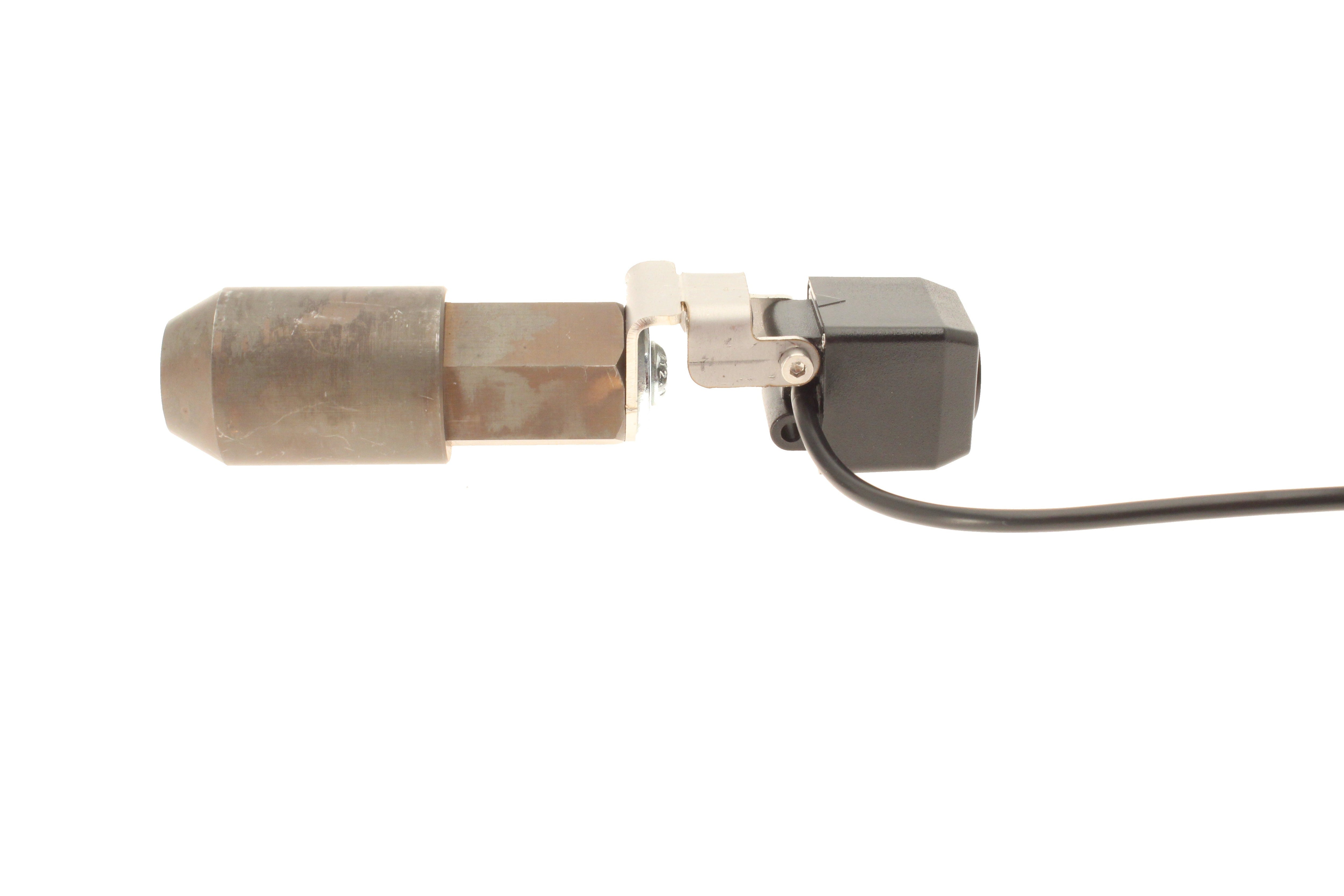

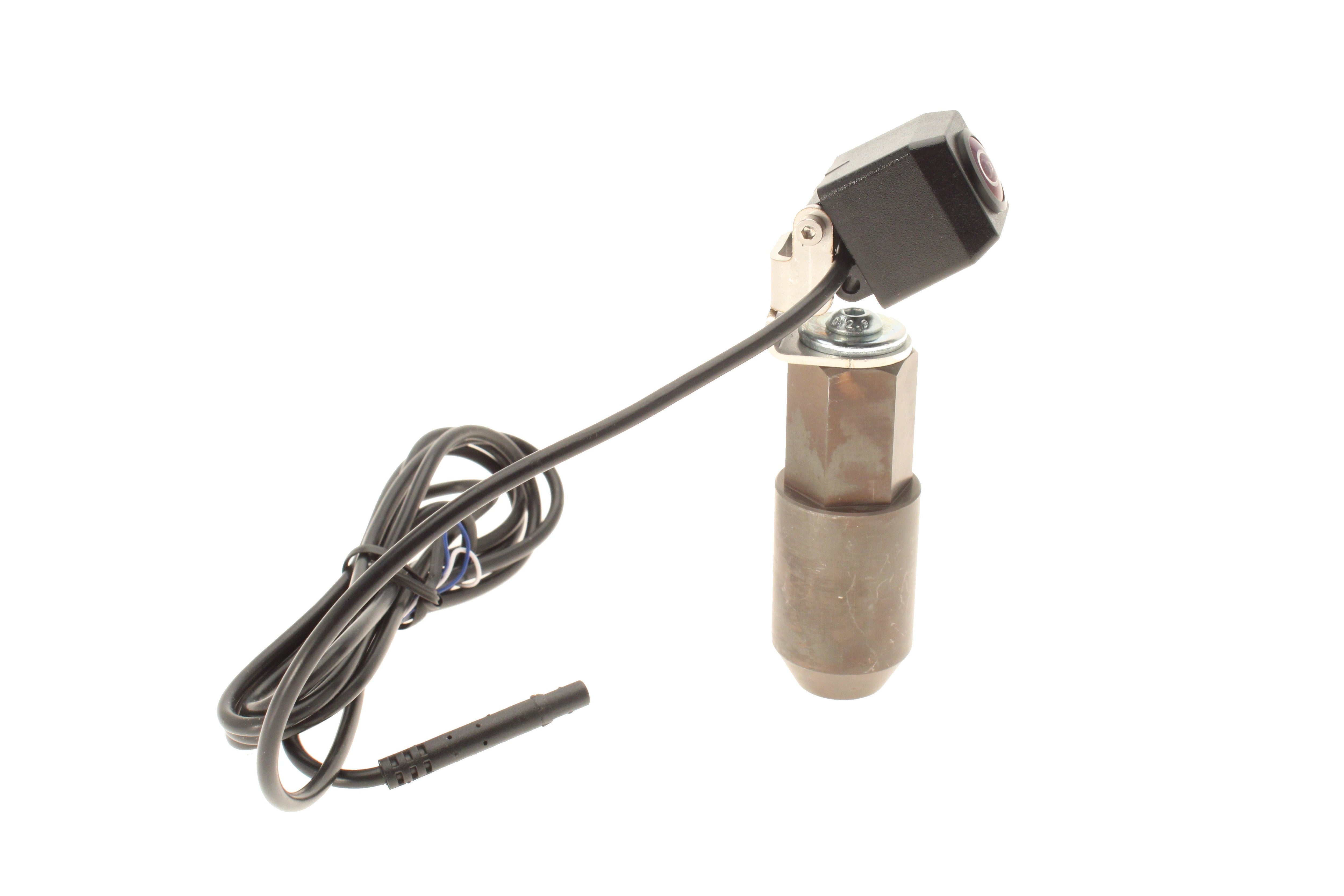

• Lug mount bracket — mounts to your spare tire lug
• 3 year warranty!

Camera Specifications:

• Super CMOS 600 TV lines of resolution
• Optional parking lines — cut a wire on the harness to turn them off
• IR sensor for night vision
• 170 degree view
• 6 volt input designed specifically for Toyota® applications
• <.2 lux (very little light required to operate)

Lug Mount Specifications:

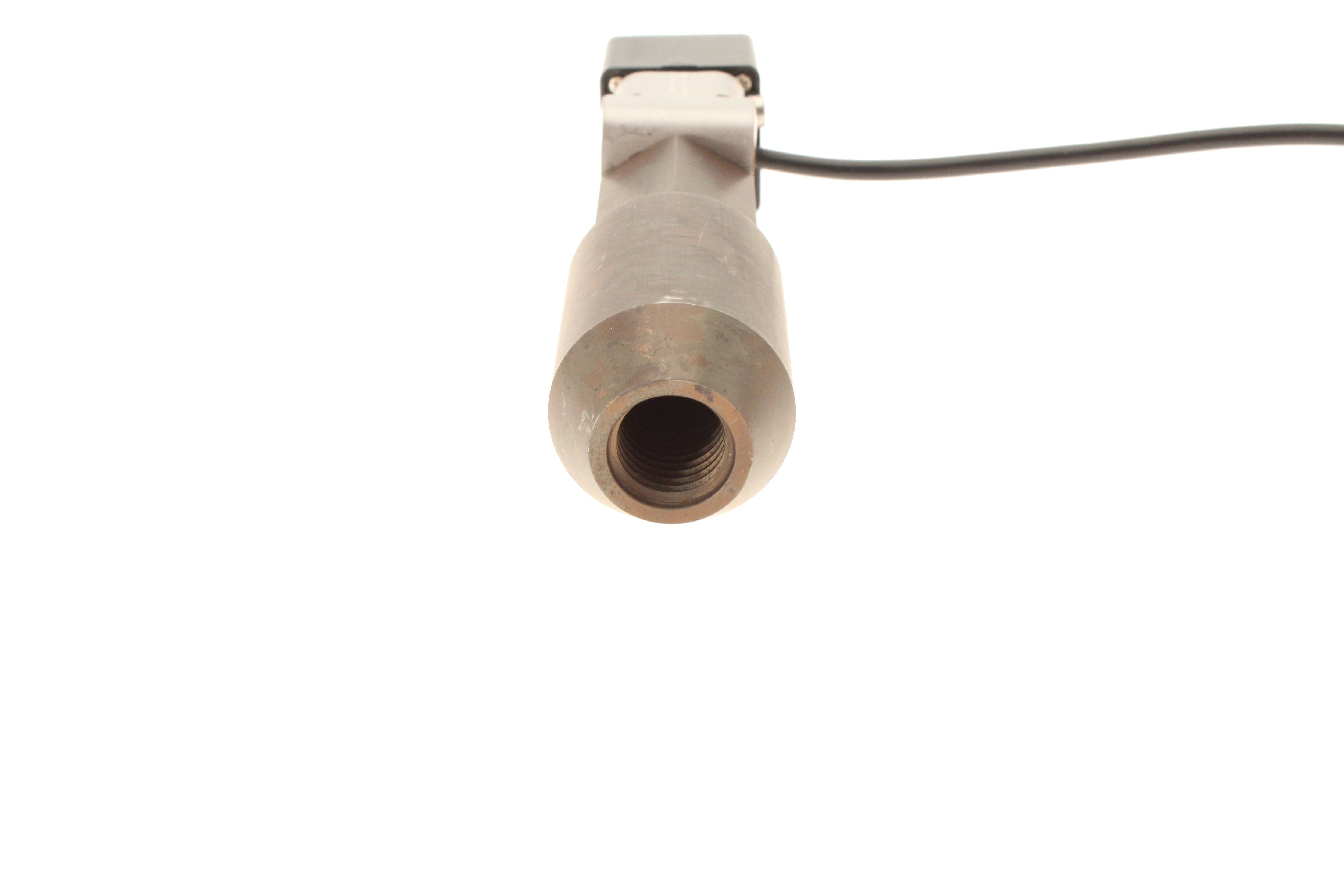

• Heat treated stainless steel 19mm hex lug nut
• Stainless steel camera mounting bracket
• Billet aluminum spacer

This product is fulfilled and shipped directly from the manufacturer, please reach out to them HERE for any warranty or return inquiries.
