Lug Mounted LVDS Camera Kit for 2019-2026 GM® 1500, 2500, 3500 w/ 360 View

Manufactured by Camera Source

This kit will allow you to relocate your factory installed tailgate camera on your GM®/Chevrolet® truck that has the factory 360-degree surround view camera system and has a RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed!

Compatible with:

• 2019-2026 Silverado®, Sierra® 1500 with Surround View System
• 2020-2026 Silverado®, Sierra® 2500, 3500 with Surround View System

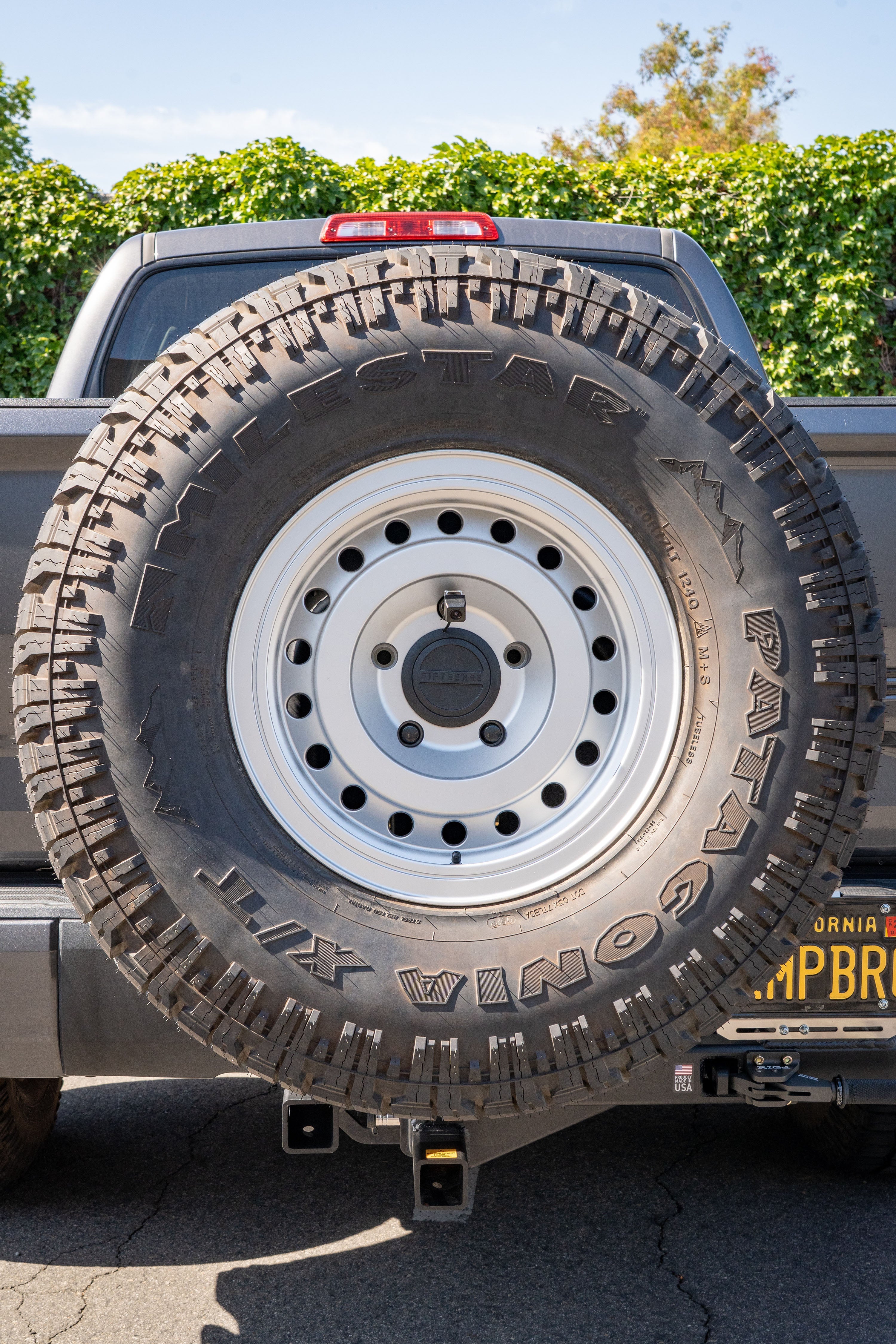

The new Lug Mounted Camera Relocation Kit improves rear visibility and allows the camera to be relocated to the RiG'd UltraSwing® or other aftermarket spare tire mount where the factory backup camera is now obstructed.

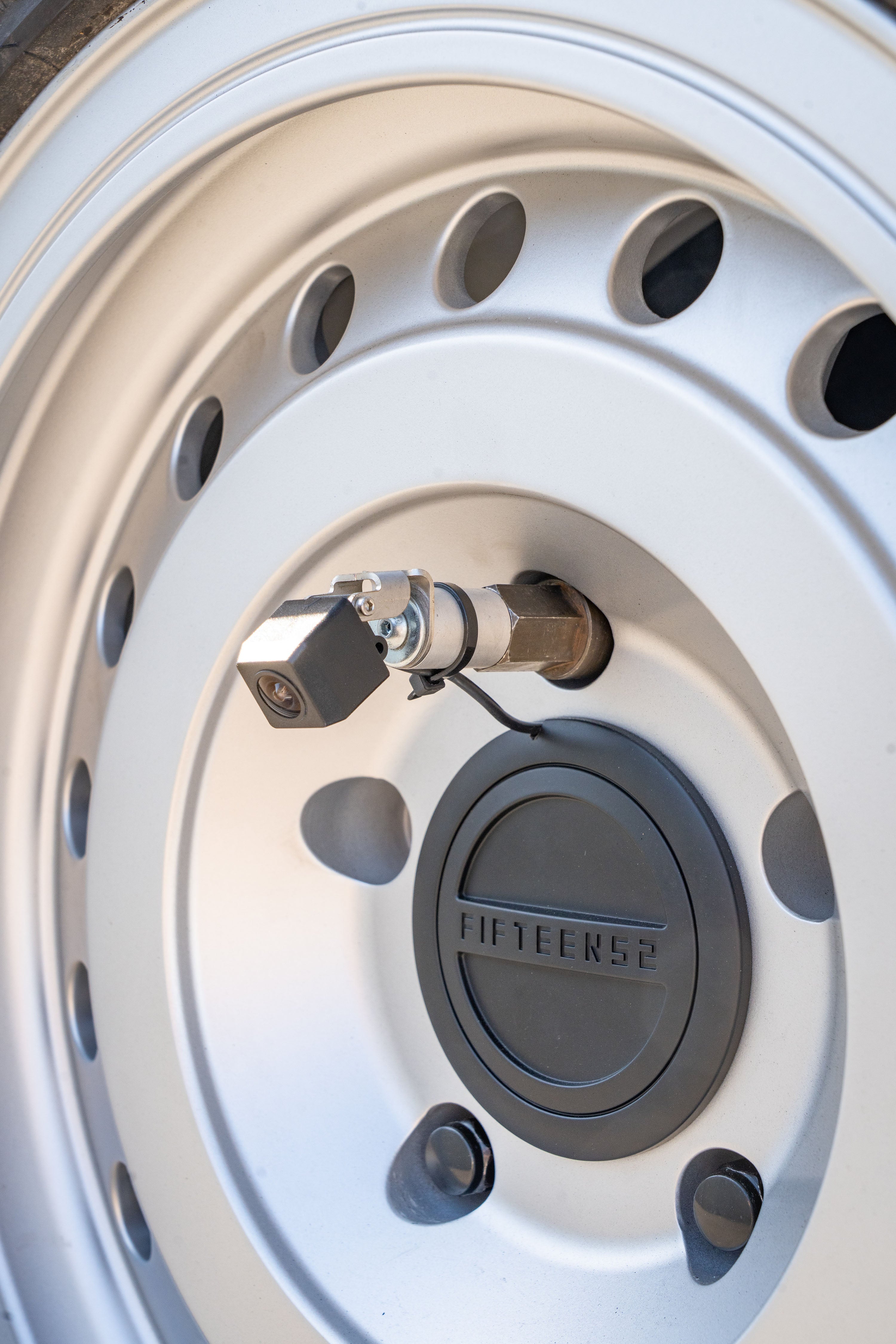

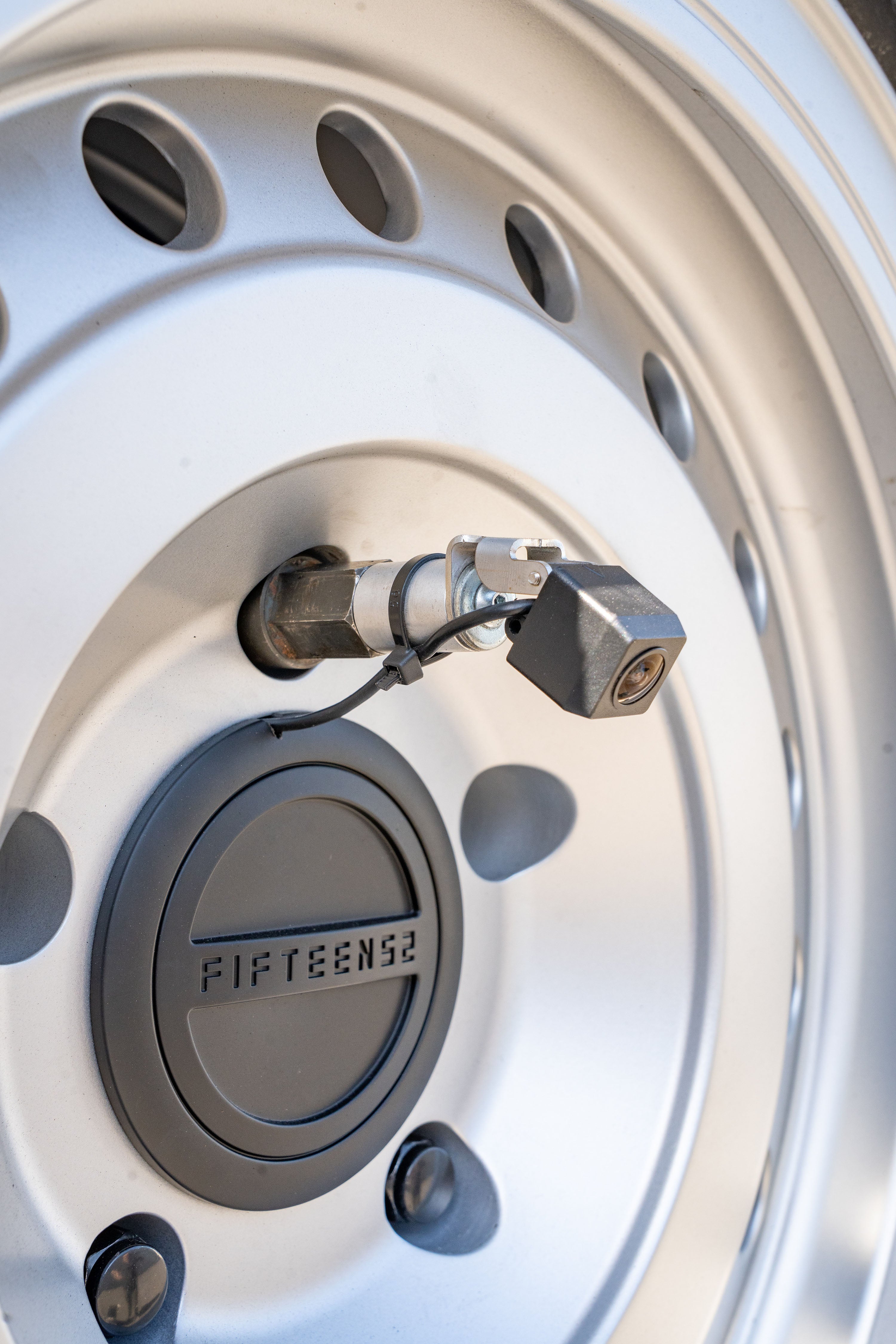

Simply mount the camera with lug mount bracket to your spare tire mount and connect the cable to your factory backup camera connection for a simple and seamless installation. The camera will function the same as before, just in a different location.

This kit is only compatible with trucks that came from the factory with the 360 degree surround view camera system or tailgate camera and cargo camera combination.

Display not included as this kit uses your existing factory display.

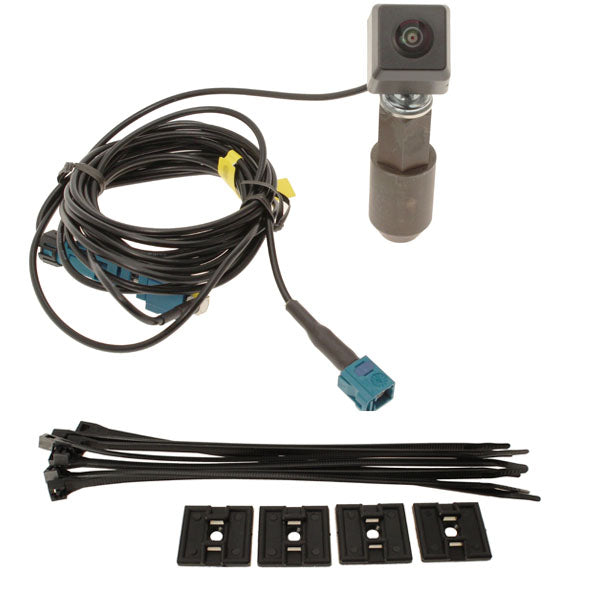

Kit includes the following:

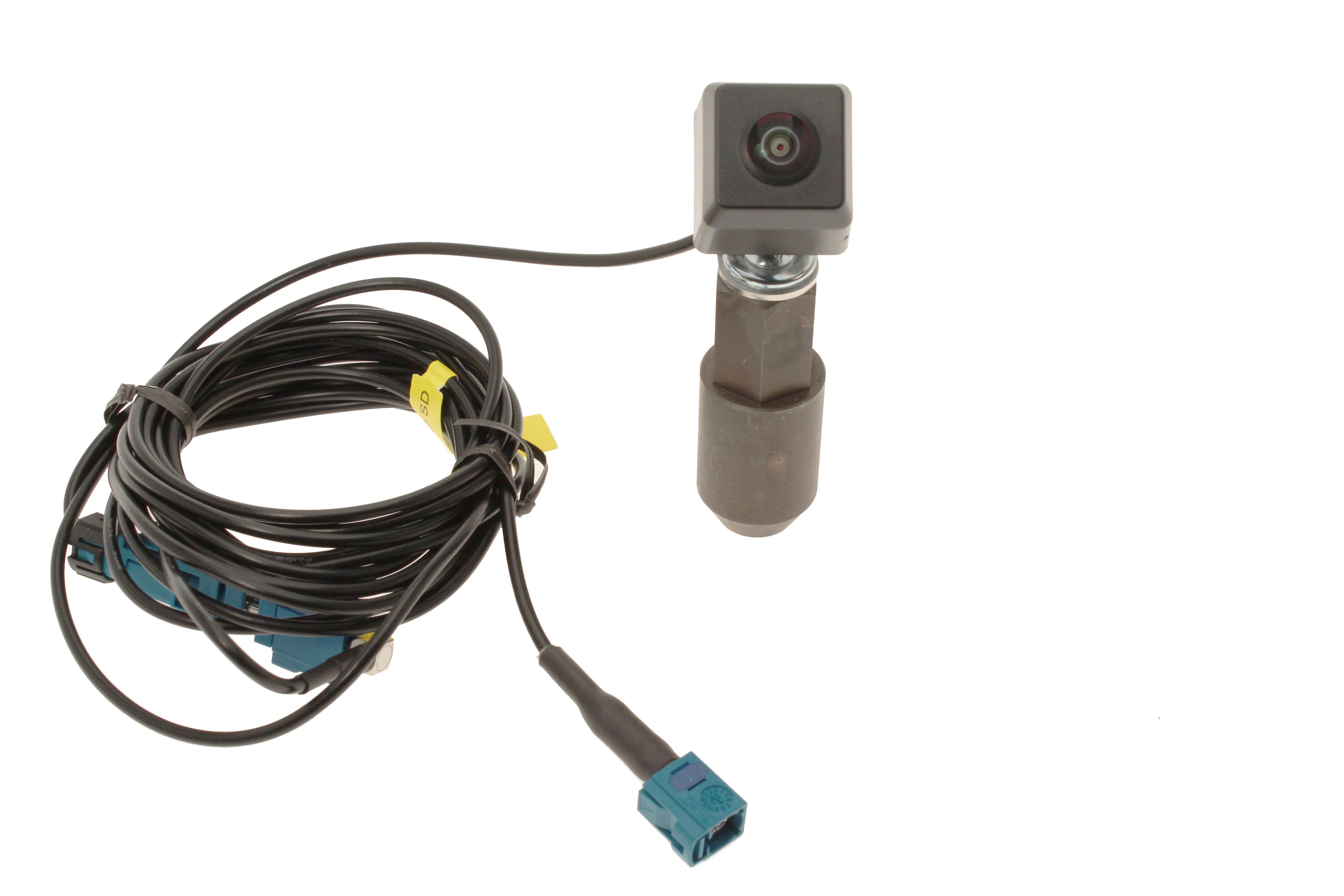

• Lug mount camera with 4 foot LVDS cable attached. Allows the system to be plug and play with your factory camera wiring.
• 8' extension LVDS cable
• Camera harness has factory end for plug and play with your existing vehicle wiring.
• Lug mount bracket - mounts to your spare tire lug
• Lug mount spacer-use for oversized spare tire
• 2 year camera warranty!

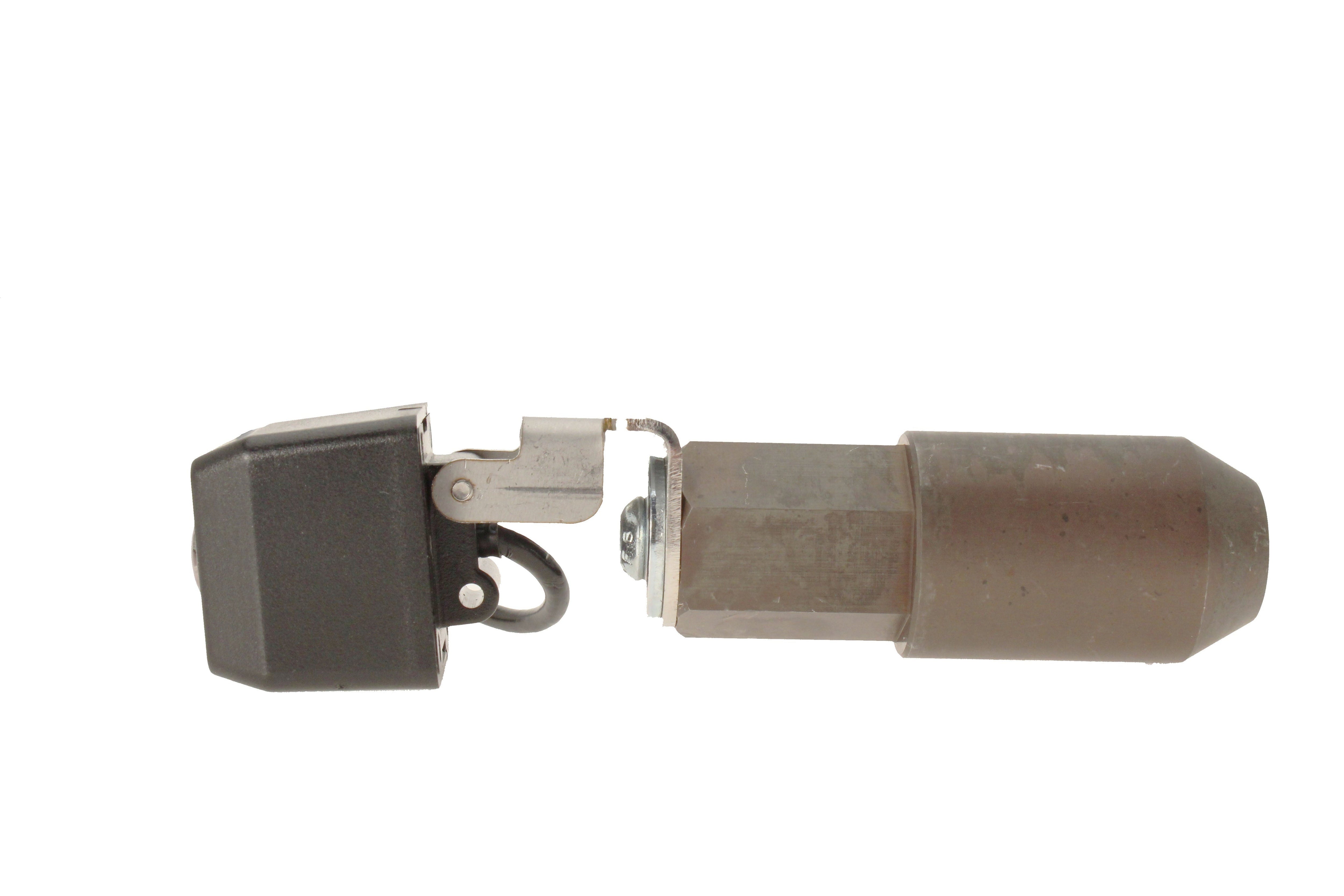

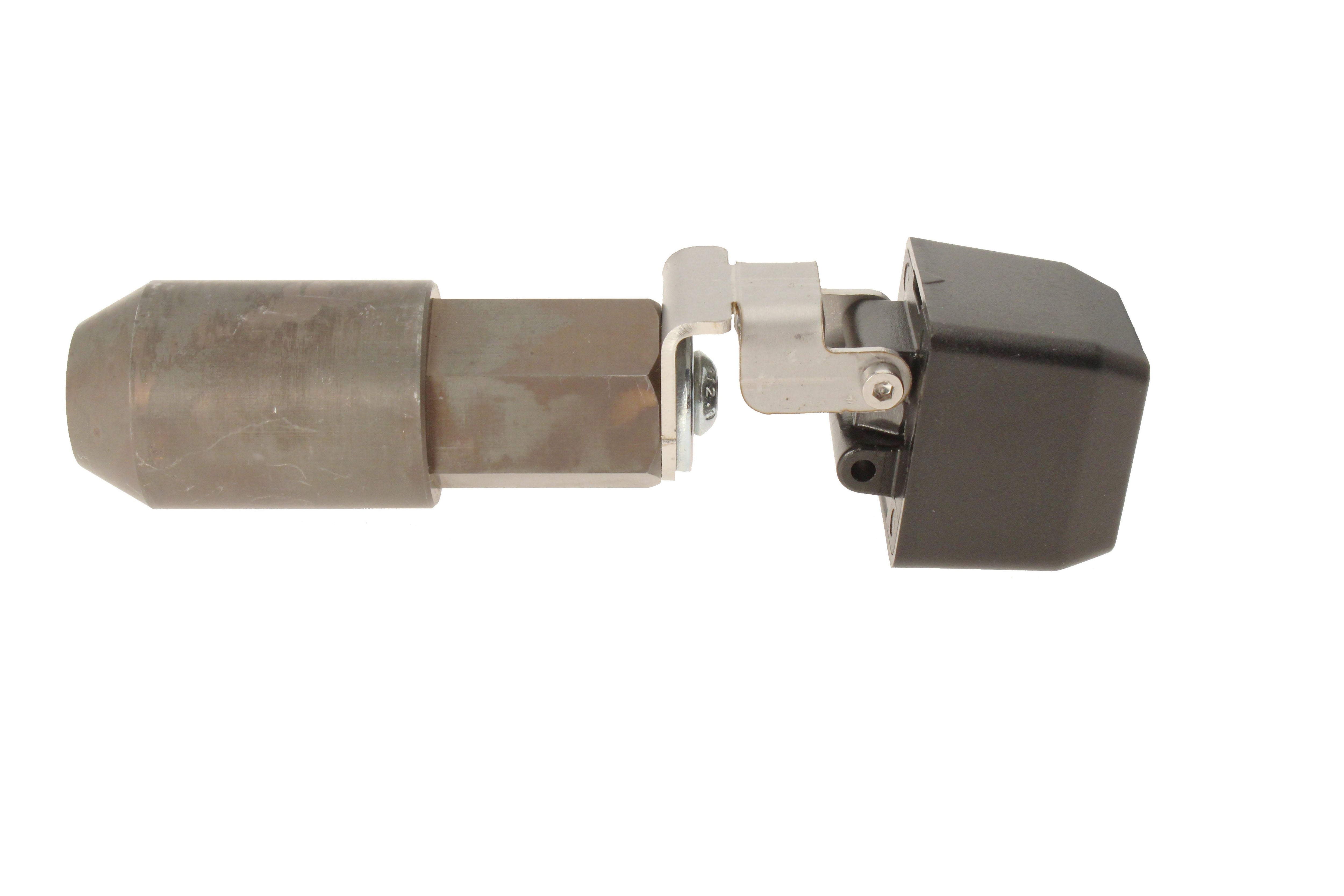

Lug Mount Specifications:

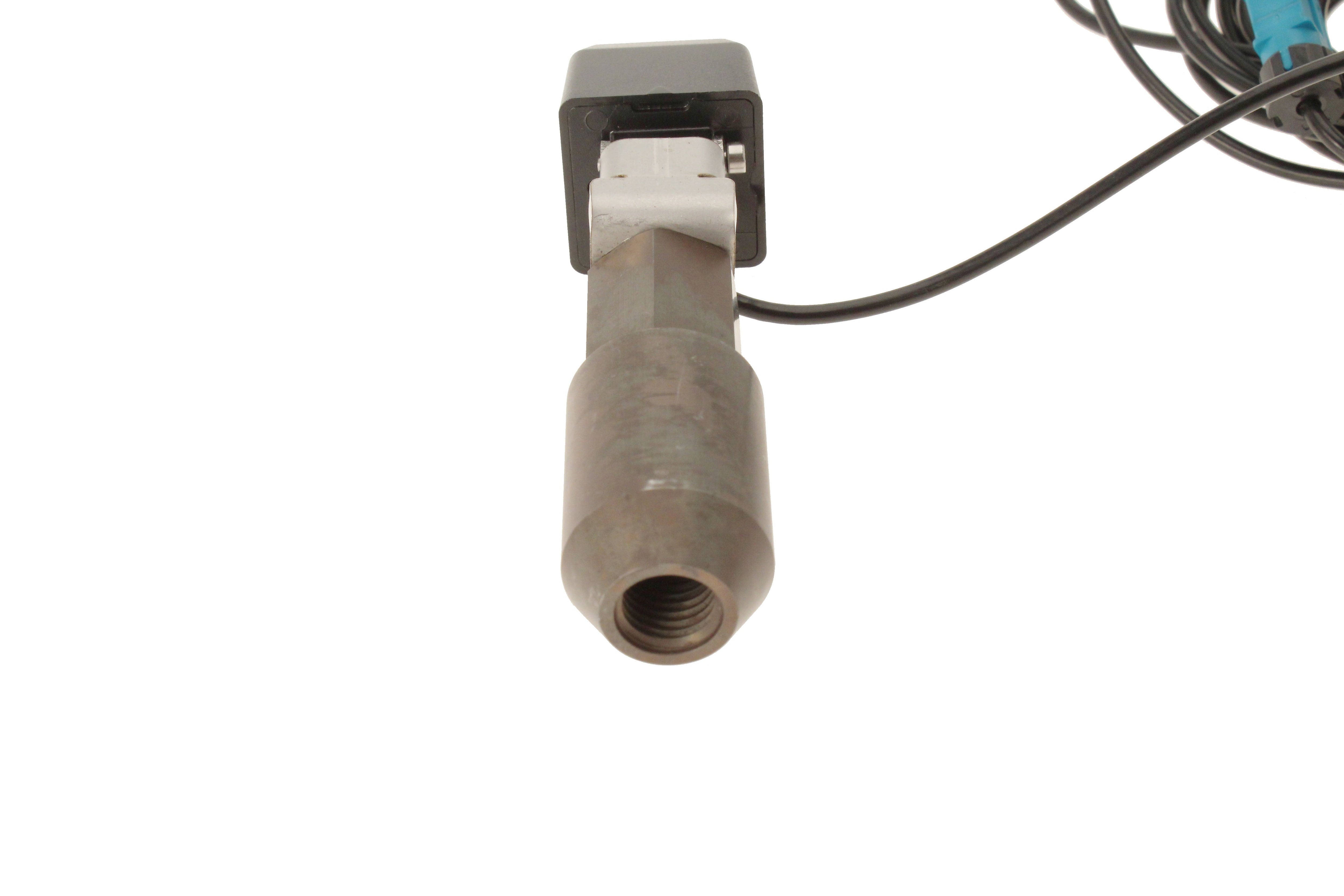

• Heat treated stainless steel 19mm hex lug nut
• Stainless steel camera mounting bracket
• Billet aluminum spacer

This product is fulfilled and shipped directly from the manufacturer, please reach out to them HERE for any warranty or return inquiries.
